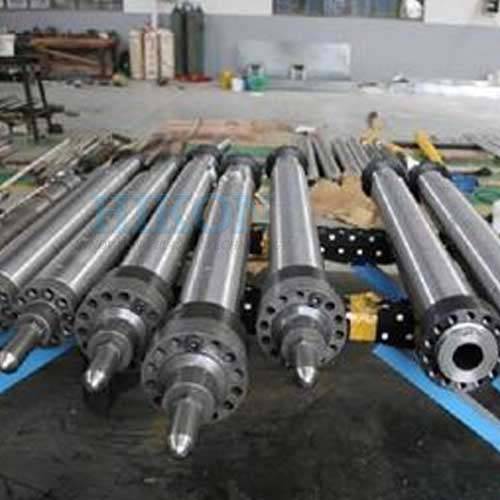

Injection Moulding Screw Barrels

Injection Moulding Screw Barrels

Material EN41B
Size 36-120mm
Brand HIKON
Finish Chromed
Thread Type Designed
Usage/Application Moulding
Screw Type Single
Appliance PP/PE/PS/Nylon/Deralin
Diameter 35-120mm
Quantity Per Pack 1
Length As per designed
Coated yes
Finishing chromed finish
Grade EN41B

Advantage :-

  • Highest throughput in the industry
  • Low melt temperature
  • Highest efficiency of any screw design
  • Melt quality can be controlled by varying the barrier gap
  • Less back pressure required

Product Description :-

  • Extruder barrel screw
  • Diameter: φ15-φ300
  • Length-diameter ratio: L/D=15-46
  • Injection molding machine melt glue tubing (barrel) screw specifications:
  • Mould clamp force: 250t-3200t
  • Injection amount: 30g-2500g
  • Technology index:
  • Nitriding layer: 0.5-0.8mm
  • Nitriding hardness: ï¼ 950HV
  • Nitriding brittleness: < level 2
  • Linearity: 0.015mm/m
  • Surface roughness: Rao 0.4/m
