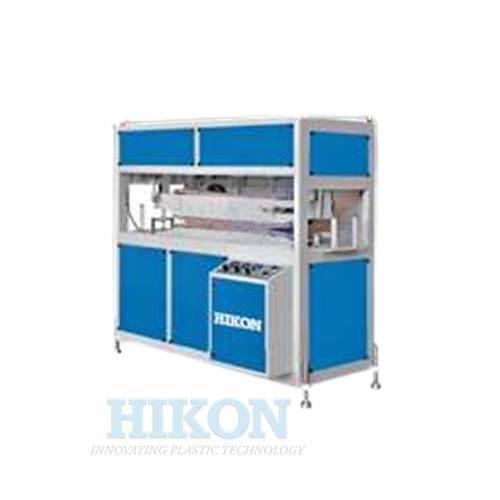

Plant Model | HIKON HD 65 | HIKON HD 65 G | HIKON HD 75 | HIKON HD 75 G | HIKON HD 90 | HIKON HD 110 |
Screw (mm) | 65 | 65 | 75 | 75 | 90 | 110 |
Pipe Range | 16-75 mm | 20-160 mm | 16-110 mm | 63-200 mm | 25-160 mm | 63-200 mm |
L/D Ratio | 28:1 | 30:1 | 28:1 | 30:1 | 28:1 | 28:1 |
Main Drive | 20 HP | 60 HP | 25 HP | 75 HP | 40 | 50 |
Output | 50 kg/hr | 150 kg/hr | 80 Kg/hr | 200 Kg/hr | 110 kg/hr | 140 kg/hr |
Salient Features: -
Plant Model | Hikon TD W100 | Hikon TD W120 | Hikon TD W120 A | Hikon TD W130 | Hikon TD W150 |
Screw Dia (mm) | 100/150 | 120/60 | 120/60 | 130/75 | 150/90 |
Three-Roller Specification | 400X1000 | 400X1400 | 400X1800 | 450X2000 | 550X2300 |
Output/hour (kg/hr) | 300 | 400 | 500 | 700 | 900 |
Product width range (mm) | 800 | 1250 | 1650 | 1800 | 2100 |
Product Thickness range | 1-10 | 1-10 | 1-10 | 1-10 | 1-10 |

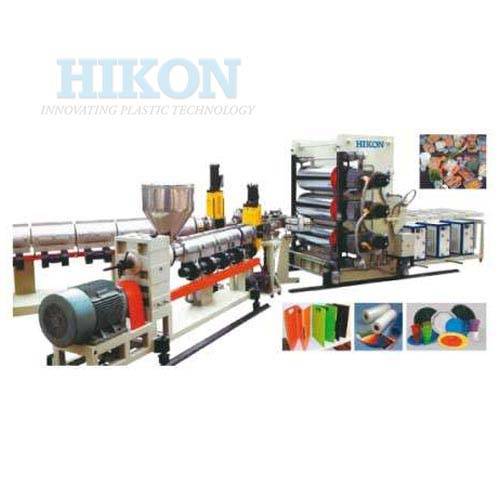

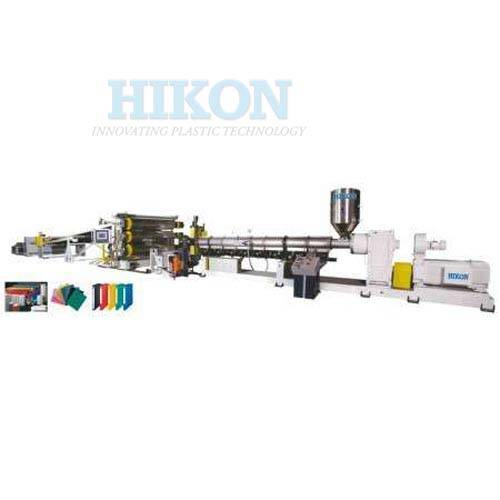

Multi sheet extrusion plant TD/DL series for thin sheet applications | Multi sheet extrusion plant TD/DL series for thick and wide sheet applications | ||||||||
Plant Model | Hikon TD 65 | Hikon TD 75 | Hikon TD DL 75/45 | Hikon TD DL 90 | Hikon TD DL 90/50 | Hikon TD 100 | Hikon TD DL 100/50 | Hikon TD DL 110/55 | Hikon TD 120/60 |
Screw Dia (mm) | 65 (30:1) | 75 (30:1) | 75/45 (30:1), (20:1) | 90 (30:1) | 90/50 (30:1), (24:1) | 100 (30:1) | 100/50 (30:1) | 100/50 (30:1) | 120/60 (30:1) |
Sheet Width (mm) | up to 750 | up to 750 | up to 750 | up to 750 | up to 750 | up to 750 | up to 1200 | up to 1200 | up to 1200 |
Sheet Thickness (mm) | 0.20 to 1.5 | 0.20 to 1.5 | 0.20 to 1.5 | 0.20 to 1.5 | 0.20 to 1.5 | 0.20 to 6 | 0.20 to 6 | 0.20 to 6 | 0.20 to 6 |
Output Kg/hr | 110-175 | 150-200 | 150-200 | 175-250 | 175-25 | 250-400 | 250-400 | 500 | 750 |
Connected Load (KW) | 50 | 62 | 67 | 75 | 80 | 120 | 130 | 150 | 200 |
